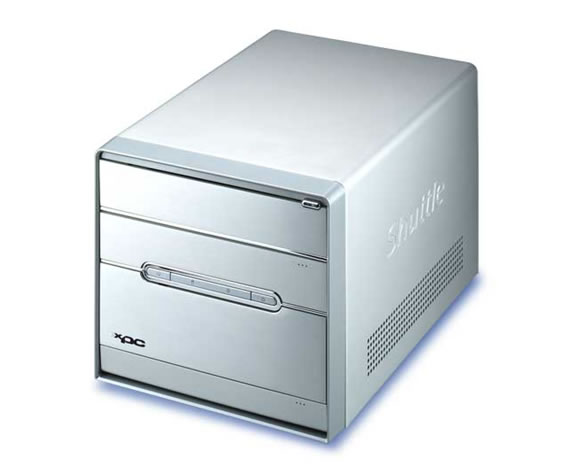

Housed in the
sophisticated G5 chassis, the Shuttle XPC Barebone SB87G5 delivers the
triple crown of computing: style, ergonomics and low noise operation.
Based on Intel's 915PL + ICH6 combo, this Shuttle XPC Barebone supports
Intel® Pentium® 4 processors, dual channel DDR, PCI-Express x16 graphics
and up to 2 Serial ATA storage drives. Integrated FireWire, USB 2.0 and
Gigabit LAN provide all the connectivity options needed, while onboard
5.1-channel sound provides fantastic audio quality and leaves a PCI slot
free for future upgrades. |
|

|
|
- Chassis
G5-type aluminum chassis, silver
color
storage bays: 1 x 5.25", 2 x 3.5" (1
internal)
stealthed drive doors
front panel with power
button and reset button
dimensions: 31 x 20 x 18.5 cm
(LWH)
weight: 2.85 kg net / 4.65 kg gross
- Mainboard
Shuttle FB87, Shuttle form factor,
proprietary design for SB87G5
chipset: Intel 915PL +
ICH6
Award V6.0PG BIOS, 4MBit flash memory
with hardware
monitoring and ACPI power management functions
dimensions: 25.4
x 18.5 cm
- Power supply unit
SilentX 250 Watt mini PSU,
supports 115/230V
connectors: 20-pin ATX, 4-pin ATX12V, 4-pin
power for graphics cards
EMI Certified: FCC, CE, BSMI
Safety
Certified: UL, TÜV, CB
- Processor support
Socket 775 supports Intel Pentium
4 and Celeron D processors
at 800 or 533 FSB
supports
Hyper-Threading
64-bit enabled platform supports EM64T CPUs
- Processor cooling system
Shuttle I.C.E. (Integrated
Cooling Engine)
advanced Heatpipe technology
linear 92mm fan
control
- Memory support
2 x 184 pin slots, supports Dual
Channel
supports PC3200/2700 (DDR400/333) DDR SDRAM
memory
up to a total size of 2 GB
- Expansion slots
1 x PCI-Express (16X)
1 x PCI (32
Bit)
- 6-channel Audio
Realtek ALC655 5.1 channel
audio
analog: line-out (6-ch), line-in, microphone, CD-in,
AUX
digital: optical SPDIF in/out, coaxial output
- Gigabit LAN controller
Marvell 88E8001 Ethernet
network controller
supports 10 / 100 / 1.000 MBit/s opteration
- Firewire controller
IEEE1394 Firewire controller VIA
VT6307
with 2 Firewire connectors (front and rear)
supports
400Mb/s, 200Mb/s, 100Mb/s data transfer rate
- Drive connectors
2 x Serial-ATA 150
1 x IDE ATA
100 drives
1 x floppy disk drive
- Front-panel I/O
Microphone
Headphone
(Line-out)
2x USB 2.0
Firewire (4 pol.)

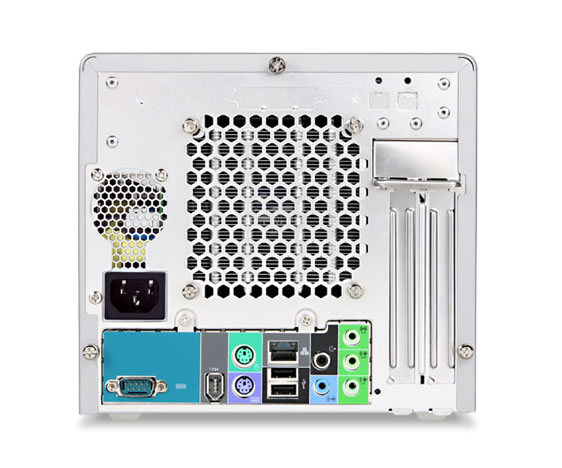

- Back-panel I/O
Firewire (6 pin)
PS/2 for mouse
and keyboard
GigaBit LAN (RJ45)
2x USB 2.0
6-ch Audio
line-out (2x rear/front, bass/center)
coaxial SPDIF
out
Line-in
Serial port (COM)
Clear CMOS
button
optional optical SPDIF in/out
optional parallel
port
optional Wireless LAN module
- Other onboard connectors
4 x USB 2.0 (two 1x5 pin,
one 2x5 pin, total 8 USBs)
1 x CDROM inputs
1 x AUX
3 x
fan connectors (2x 3 pin, 1x 4 pin)
1 x optical SPDIF in/out
header
- Accessories
XPC Installation Guide
XPC Driver
CDROM
Shuttle Extras CDROM
I.C.E. heat-pipe module
FDD
cable
Serial ATA cable
IDE CDROM drive cable
Power
Cord
FDD power extension cord
Twin Adhesive,
Screws
Mounting bracket, Heatsink Compound
- Conformity
This device is classed as a technical
information
equipment (ITE) in class B and is intended for use
in
living room and office. The CE-mark approves the
conformity by the EU-guidelines:
- EMV-guideline 89/336/EWG
electromagnetic tolerance
- LVD-guideline 73/23/EWG use of
electric devices
within certain voltage-limits
|
|
|
|
