BIOS STAR -[ FLASHER™]
BIOSTAR MICROTECH INT'L CORP. announces to provide [FLASHER™] technology on most of motherboards to support user-friendly operation for BIOS update.

Regularly, when users want to update BIOS, there are two steps to be followed. First, move to DOS environment. Second, use and maybe download the flash utility to update the BIOS. Unfortunately, there is no DOS support under WindowsR XP. Moreover, it takes time to prepare the right flash utility and make a Bootable Floppy Disk if necessary. BIOSTAR's [FLASHER™] technology integrates flash utility function onto BIOS firmware. The advantage is users do not need neither to enter DOS nor to prepare the utility. Just simply enter CMOS and do it.

To see is to believe. Enjoy the speed, safety & convenience when necessary.

Flasher Step by Step

1. Download the latest BIOS file from the BIOSTAR website to a floppy disk.

2. Insert the disk that contains the newest BIOS file into the floppy drive.

3. Power ON the computer.

4. Press [DEL] to enter CMOS setup.

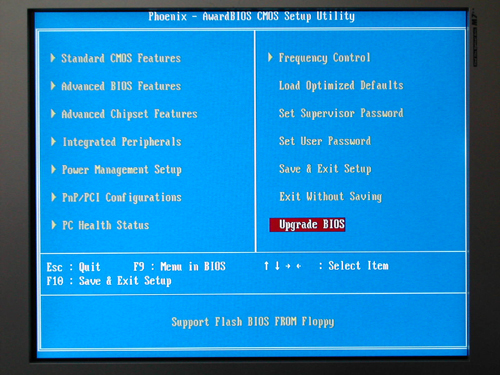

5. Select " Upgrade BIOS " item then press Enter, refer to Figure 1.

Figure 1

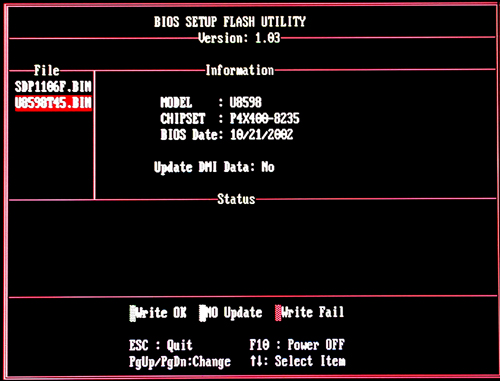

6. Press " Arrow Up/Down " key to choose BIOS file, refer to Figure 2.

Figure 2

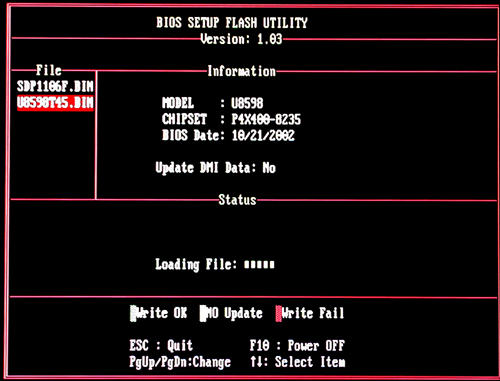

7. Press [Enter] to load the BIOS from the floppy disk, refer to Figure 3.

Figure 3

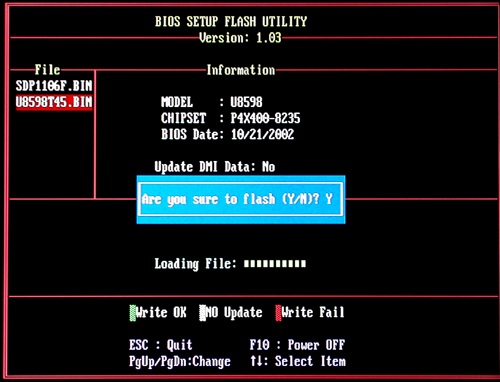

8. At the prompt "Are you sure to flash (Y/N) ", press [Y] to flash BIOS or [N] to cancel the flashing process, refer to Figure 4.

Figure 4

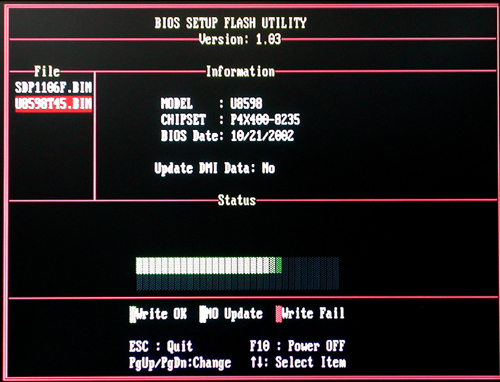

9. After pressing [Y], the flash starts to process, refer to Figure 5.

Figure 5

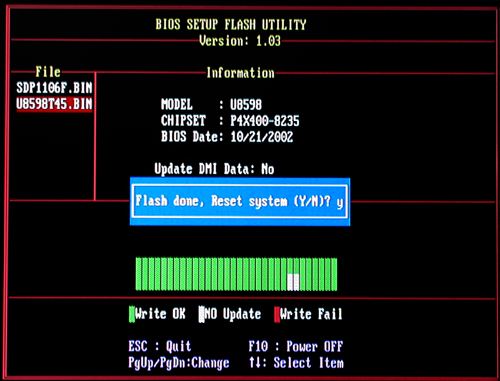

10. A message " Flash done, Restart System (Y/N) " will appear if the system was successfully updated the BIOS, refer to Figure 6.

Figure 6

11. Press [Enter], then the flashing is done!
