The Windows Flasher - [WINFlasher™]
BIOSTAR MICROTECH INT'L CORP. announces to provide [WINFlasher™] technology on most of motherboards.

WINFlasher - As traditional methodology, the BIOS upgrade process is under DOS environment. WINFlasher, a new flashing utility allow users run the BIOS upgrade process easily under Windows environment. It is friendlier, quicker and safer.

[WINFlasher™] Procedure

1. Please verify your exact Motherboard model and download the latest BIOS file from the BIOSTAR website. (http://www.biostar.com.tw)

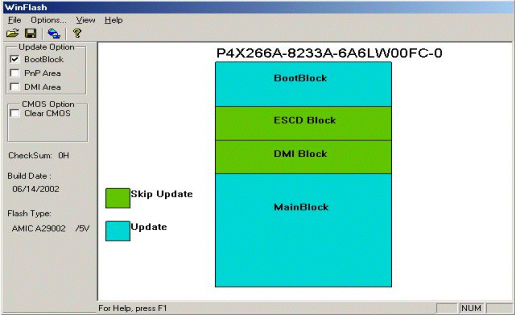

2. Run the WINFlasher utility. (Figure 1.0)

Figure 1.0

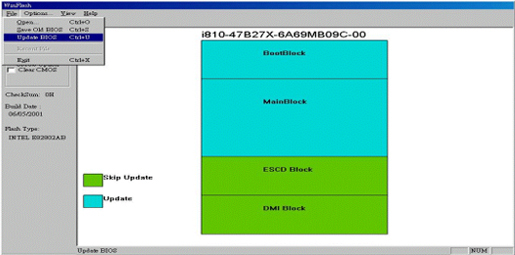

3. Go to "Files" and select "Update BIOS" (Figure 2)

Figure 2.0

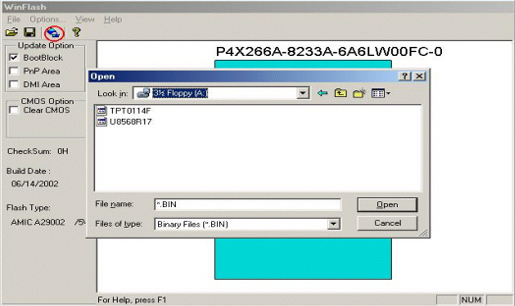

4. Select and open the updated BIOS file. (Figure 3.0)

Figure 3.0

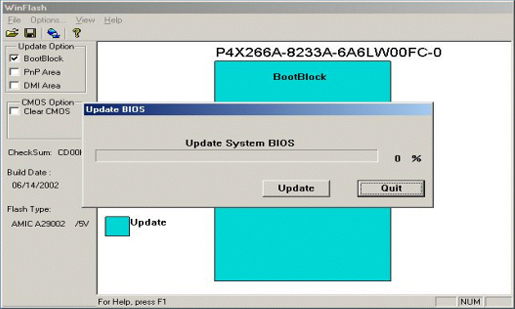

5. Press "Update" to start to Flash the BIOS. (Figure 4.0)(P.S Please do not disturbed the system, while the BIOS update taking process.)

Figure 4.0

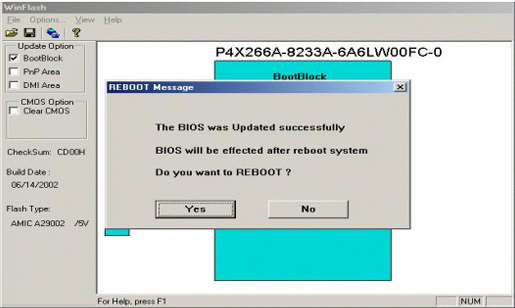

6.Press "Yes" to reboot the system. New BIOS will activate afterwards. (Figure 5.0)

Figure 5.0

Assuming that you have successfully flashed the BIOS, please press "Delete" key to enter the BIOS setup Menu, during the boot screen. Then "Load Optimized Default". Save and Quit the BIOS Setup Menu afterward. After that, the BIOS Flashing process is completed.
