Ultra silent home PC with Pentium M processor

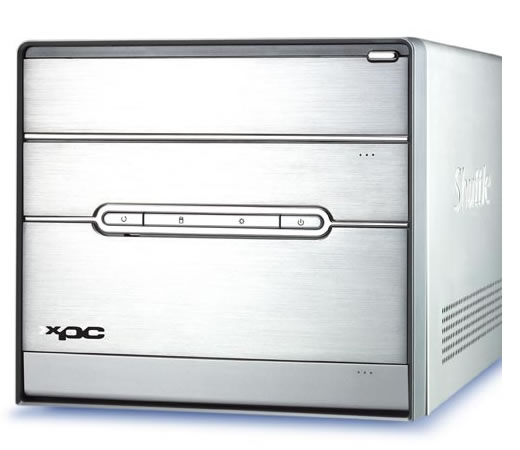

Based on Intel's Pentium M embedded latest chipset architecture, usually
used in laptop PCs, the Shuttle XPC Barebone SD11G5 offers a perfect
combination of very high performance, low power consumption and ultra
silence. It is powered by an fanless external 220-watt power supply and the
ultra silent heat-pipe-based cooling system eliminates annoying noise. This
compact, stylish SFF PC delivers unmatched entertainment enjoyment for
unparalleled user experience. |
|
|
                        |
|
- Chassis
Silver G5-type aluminum chassis
storage bays: 1 x 5.25", 2 x 3.5" (1 internal), stealthed drive doors
dimensions: 31 x 20 x 18.5 cm (LWH)
weight: 3.6 kg net / 5.1 kg gross
- Mainboard
Shuttle FD11, Shuttle form factor, proprietary design for XPC SD11G5
Chipset: Intel 915GM + ICH6M
Award V6.0PG BIOS, 4MBit flash memory
with hardware monitoring and ACPI power management functions
dimensions: 25.4 x 18.5 cm
- Power supply
External fanless 220W power adapter
supports 100/240V AC input voltage
EMI Certified: FCC, CE, BSMI
Safety Certified: UL, TÜV, CB, BSMI
- Processor support
Socket 479 support Intel Pentium M processors at 533 or 400 MHz FSB
- Intel Pentium M at 533/400 MHz FSB
- Intel Pentium M LV at 400MHz FSB
- Intel Celeron M at 400MHz FSB
- I.C.E. Heat-Pipe Cooling
Shuttle I.C.E. (Integrated Cooling Engine) with advanced Heatpipe
technology
- Memory support
supports Dual Channel DDR2-533/400 DDR SDRAM memory
two DIMM sockets support up to a total size of 2 GB
- Expansion Slots
1 x PCI-Express (16X) supports 8 GB/s data transfer
1 x PCI-Express (1x) supports 500 MB/s data transfer
1 x Mini PCI slot
- Integrated Graphics
Intel Graphics Media Accelerator 900 (GMA900)
with PCI-E x1 improved bandwidth
DX8/DX9 support and enhanced 3D performance
Dynamic Video Memory Technology (DVMT) 3.0
shared Memory max. 224MB
VGA output: analog 15pol. D-Sub and digital DVI port
- 8-channel audio
Creative Sound Blaster Live! 24 Bit
7.1 channel EAX Advanced High Definition Technology
Supports 24bit/96 kHz sampling rate frequency
analog: line-out (8-ch), line-in, microphone, CD-in, AUX
digital: optical SPDIF-in, optical SPDIF-out
- LAN Controller
Broadcom 5789 Ethernet network controller
100Base-T specification compliant, with RJ45 connector
supports 10 / 100 / 1.000 MBit/s opteration and Wake-On-LAN (WOL)
function
- Firewire Controller
IEEE1394 Firewire controller VIA VT6307
with 2 Firewire connectors (front and rear)
supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
- Drive connectors
2 x Serial-ATA, 150 MB/s bandwidth
1 x IDE ATA 100 drives
- Front Panel connectors
Microphone
Headphone (Line-out)
2x USB 2.0
Firewire (4 pol., Mini port)
Power on button and Reset button
Power LED and HDD LED
- Back Panel connectors
VGA and DVI out
CMOS button
Firewire (6 pin)
PS/2 for mouse and keyboard
GigaBit LAN (RJ45)
2x USB 2.0
VGA / S-Video connector
8-ch Audio line-out (2x rear/front, bass/center, surround/back)
SPDIF: optical in/out
Line-in
optional Wireless LAN module
optional Printer port
- Other connectors
4 x USB 2.0 (total number = 8)
2 x CDROM and Mini-CD inputs
1x Parallel port
1 x AUX-in
2x Fan connectors
- Accessories
User Guide
Driver CD
Shuttle Extras CD
HDD/SATA cable
PEG power cable (for PCIe graphics)
Adapter cable for Composite to S-Video
Power cord
Heatsink compound
Front Feet
Twin Adhesive
Screws
|
|
|
|
