Overview
The XPC SN26P combines the power and performance of NVIDIA SLI with Shuttle's award winning small form factor technology. This cutting-edge small form factor computer has been engineered to meet the performance needs of the world's most demanding gamers. Powerful, portable and cool. The XPC SN26P is the ultimate gaming system. |
| |
| Hot Features |
| |
| SN26P motherboard: |
 NVIDIA nForce4 SLI
1GHz FSB with HyperTransport™ link
Dual-channel DDR 400 memory (2GB max)
PCI Express x16 graphics (2 slots)
GeForce 7800 series support
Serial ATA (4 headers support NCQ and
3Gb/s)
NVIDIA MediaShield™ SATA/PATA RAID
technology
Gigabit LAN with NVIDIA ActiveArmor Firewall
Via Envy24PT hardware audio |
|
| |
| Silent X Technology : |
4G Integrated Cooling Engine (ICE)
Silent X 350W PSU
Airflow cooling mechanics
Smart Fan |
|
| |
| Case: |
Shuttle P Chassis
Stealth drive doors
Preinstalled drive/power cables
Toolless drive brackets
8-in-1 card reader |
|
| |
|
|
|
|
| |
| |
| |
| |
|
| NVIDIA MediaShield storage technology |
|
Unique support for four SATA and 1 ATA-133 drives gives the XPC SN26P the storage edge over competing SFF solutions. Cross platform (SATA and PATA) RAID 0, RAID 1 and JBOD support (RAID 0+1 is also supported) provides flexible data security and performance. With the performance boost of RAID games can launch faster, and levels load more quickly. The XPC SN26P gets you into the action all guns blazing. |
|
| |
| NVIDIA ActiveArmor Hardware firewall |
|
NVIDIA ActiveArmor Firewall adds a protection to the XPC SN26P??s Gigabit Ethernet connection by filtering out any unauthorized or suspicious traffic. Easy to set up and fast to configure, NVIDIA ActiveArmor Firewall helps keep you safe when playing online or at LAN parties. |
|
| |
| PCI Express interface with SLI |
|
The XPC SN26P supports the latest PCI Express graphics cards to deliver the power needed to enjoy the next-generation games. The x16 PCI Express bus delivers over 4GBps in both upstream and downstream data transfers allowing games to be more visually stunning with larger levels, more complex architecture and higher quality textures.
NVIDIA SLI technology allows gamers to double the graphics processing power within the XPC SN26P for higher frame rates, higher resolutions, and higher performance when using image-enhancing features such as anti-aliasing and anisotropic filtering. The best frame rates, the best image quality, the best features. Play the best with the XPC SN26P. |
|
| |
| VIA Envy24PT audio |
|
The XPC SN26P integrates the VIA Envy24PT multi-channel audio controller to deliver high-fidelity audio. Enabling 24-bit resolution and 96KHz sampling rates, the VIA Envy24PT provides support for the latest audio content through its analog and digital interfaces. Further, this model features 7.1-channel outputs enabling support for the latest Dolby Digital EX and DTS ES DVD-Video soundtracks.
This XPC delivers high-intensity sound effects, adrenalin pumping music, and multidirectional audio, for a fully immersive gaming environment. Get into the game with the XPC SN26P. Graphics Card Compatibilitya |
|
| |

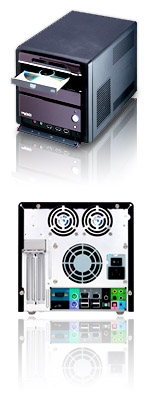

| Advanced I/O |
|
| *With optional XPC Accessory PN18 Wireless LAN module |
| |
| |
| Silent X Technology |
| |
|
Silent X comprises of a collection of hardware design innovations, advanced technological features, and powerful software tools exclusive to Shuttle and the XPC. The Silent X PSU, Integrated Cooling Engine (ICE) heat-pipe CPU cooler, Active Airflow intelligently engineered airflow mechanics, mechanical dampening, and Smart Fan and XPC Tools software, all work together to ensure the XPC SN26P remains “Super Quiet, Super Cool” even under pressure when playing the latest demanding 3D games. |

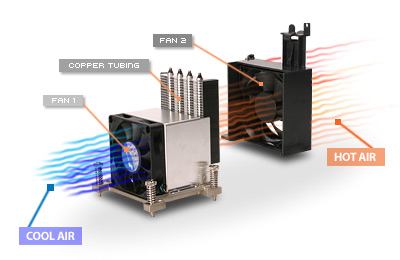

| Integrated Cooling Engine (ICE) Module |
| |
| Designed for the P chassis, the 4G Integrated Cooling Engine (ICE) in this model is based on the same concept that made the first XPCs a consumer success. The ICE heat-pipe module uses convection cooling to transfer heat away from the processor. Copper tubing, coated in nickel and filled with distilled water of specific pH provides the conduit through which heat passes to a radiator and is dissipated out of the system. A quiet, speed controlled 92mm ducted fan covers the radiator, providing both processor cooling and case exhaust.
Improving on the standard ICE module that is a part of earlier XPCs, the P series ICE module uses two fans in push-pull mode to more efficiently pass cool air over the ICE radiators fins. This makes it possible to deliver up to 50CFM. Further, both fans are PWM spec – which delivers finely tunable, linear fan speed control – and controllable by Shuttle’s Smart Fan technology. |
|
|
| |
| 350 Watt Power Supply |
| |
| This highly efficient 350W PSU delivers enough power to support high-powered CPUs, high-performance graphics cards, and multiple disk drives while maintaining whisper quiet operation. Tested in our acoustic lab from a distance of 50cm – to create an environment similar to actual usage (many competitors take measurements at 1M) – the Shuttle Silent X 350W PSU in the XPC SN26P operates at just 27dB under normal load. |
| |
|
| |
| Active Airflow |
| |
| The XPC SN26P includes our revolutionary approach to airflow design. Multiple points at the front, side, and bottom of the chassis ensure that sufficient cool air is drawn into the system to cool the components within. Warm air inside the chassis is channeled directly, using heat-pipe technology, to one of several distinct exhaust points preventing excess build up of heat within the XPC, which can result in loss of system stability, or component damage. |
|
| |
| Smart Fan |
| |
| Smart Fan incorporates linear control metrics to provide optimal cooling and noise reduction. Under normal conditions, Smart Fan keeps fan speeds low, minimizing acoustic noise. When loads increase, Smart Fan raises fan speeds to provide optimal cooling. Users can customize Shuttle’s Smart Fan settings to precisely match their desired temperature and fan speed metrics. |
|
| |
|
|
|
| |
|
| |
| P Chassis |
| |
| The XPC SN26P uses the new P chassis, a member of Shuttle's fifth generation XPC chassis family. The Shuttle P chassis has been designed with two major principles in mind, refined ergonomic styling and easy installation |
| |
| |
| Stealth drive doors |
| |
| The P's clean fascia is thanks to three well-integrated stealth bay covers. The optical drive, floppy drive and front media ports can all be hidden from view when not in use providing superior style and visual appeal. |
|
| |
| Internal design innovation |
| |
|
The redesigned internal structure of the P chassis allows for two 3.5-inch drives and one 5.25-inch drive. The internal drive rack offers space for one 3.5-inch and one 5.25-inch drive with another other bay located in the top portion of the chassis. The rack??s 3.5-inch bay can be used to install a FDD or HDD if desired, making the P chassis incredibly expandable and flexible. |
|
| |
| Toolless drive installation |
| |
|
P chassis XPCs are based on Shuttle's innovative toolless installation system. Thumb screws, clip-on components, and easy-to-use drive brackets make setting up and configuring the XPC a snap, without the need for even a screwdriver. |
|
| |
| Integrated cable management |
| |
|
To ease installation, improve airflow within the system, and reduce vibrations and noise, all cables within the P chassis are pre-installed, wrapped and clipped securely to the chassis frame. All that is needed is to add the components to create a powerful and tidy machine. |
|
| |
| 8-in-1 card reader |
| |
|
A standard feature in the P chassis, this card reader features support for 8 different memory formats. (Compact Flash I (CF I), Compact Flash II (CF II), IBM Microdrive (MD), Smart Media Card (SM/SMC), Secure Digital card (SD), Multi Media Card (MMC), Memory Stick (MS), and Memory Stick Pro (MSP). Operating at 480Mb/s (USB 2.0), this value added component makes it easy to transfer files to and from digital music players, cameras, and other multimedia devices. |
|
|
|
| |
| |
| Specifications |
FORM FACTOR |
Shuttle Form Factor
P series chassis |
|
|
PROCESSOR |
AMD Athlon™ 64/FX/X2 Support
Socket 939
1GHz system bus with 2000MT/s HyperTransport |
|
|
SLI Support |
| NVIDIA GeForce 7800 series |
|
|
MEMORY |
(2) 184 pin 333/400 DDR DIMM slots
1GB per DIMM, max 2GB capacity
Dual-channel memory controller |
|
|
|
AUDIO |
VIA Envy24PT
7.1 Channel H/W audio
Digital SPDIF I/O |
|
|
|
GIGABIT ETHERNET |
Marvell PHY 88E1111
10/100/1000 Mb/s operation
Supports Wake-on LAN |
|
|
|
FIREWIRE® 400 |
VIA VT6307
Support 400Mb/s, 200Mb/s, 100Mb/s transfer rate |
|
|
|
RAID SUPPORT |
Integrated NVIDIA MediaShield™ RAID
SATA/PATA RAID
Support RAID 0,1, JBOD |
|
|
|
ONBOARD HEADERS & CONNECTORS |
(1) ATA133 IDE connectors
(1) Floppy connector
(4) Fan connectors
(1) CD in header
(1) Parallel port header
(1) Wireless keyboard/mouse connector
(4) SATA connectors
(1) Line in header
(3) USB 2.0 headers
(1) 8pin 12V power connector
(1) 6 pin 12V power connector
(1) IrDA header
Clear CMOS jumper |
|
|
FRONT PANEL |
(1) Power button
(1) Reset button
(2) USB 2.0 ports
(1) FireWire port
(1) Microphone
(1) Headphones
(1) 8-in-1 card reader |
|
|
BACK PANEL |
(4) DVI-I ports (2 active)
(2) TV-out connectors (1 active)
(1) PS2 Keyboard/Mouse
(1) Serial Port
(4) USB 2.0 ports
(1) FireWire port
(1) Gigabit (RJ-45) LAN port
(1) Audio - Front /Center- out/Surr/Surr-back
(1) Line in
(1) Optical SPDIF in/out
(1) Coaxial RCA connector
(1) Clear CMOS |
|
|
EXPANSION BAY |
2 x 3.5" bays
1 x 5.25" bay |
|
|
DIMENSIONS |
325(L) x 220(W) x 210(H) mm
|
|
|
POWER |
Output: 350 Watt
Input: 100/240V AC
Active PFC
EMI Certified: FCC, CE, BSMI
Safety Certified: UL, TUV, CB |
|
|
ACCESSORIES |
User Manuals and driver CDs
Cables and connectors
Heatsink compound
Front Feet / Mounting brackets |
|
|
|
|
|
|
|
|
|
