| 64-bit power computing! |
|

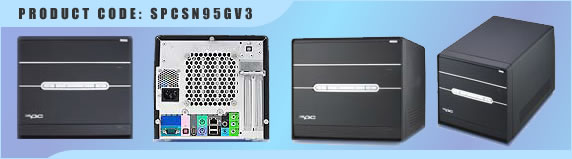

The XPC SN95G5V3 destroys the myth that bigger PCs are faster. Designed for power-hungry users, this AMD Athlon 64-based small form factor (SFF) computer delivers tower-crushing, performance in one-third the space. Do everything faster, get the XPC SN95G5V3 today!
|
|
|
|
- Chassis
G5-type aluminum chassis, black color
storage bays: 1 x 5.25", 2 x 3.5" (1 internal)
stealthed drive doors
dimensions: 30 x 20 x 18.5 cm (LWH)
weight: 2.85 kg net / 4.65 kg gross
- Mainboard
Shuttle FN95, Shuttle form factor, proprietary design for SN95G5V3
chipset: NVIDIA nForce3 250Gb
Award V6.0PG BIOS, 4MBit flash memory
with hardware monitoring and ACPI power management functions
dimensions: 25.4 x 18.5 cm
- Power supply unit
SilentX 240 Watt mini PSU, supports 115/230V
connectors: 20-pin ATX, 4-pin ATX12V
- Processor support
Socket 939 supports AMD Athlon 64 /FX /X2 Processors
supports 1 GHz Hypertransport (2000 MT/s)
- Processor cooling system
Shuttle I.C.E. (Integrated Cooling Engine)
advanced Heatpipe technology
linear fan control, 92mm cooling fan
- Memory support
2 x 184 pin slots, supports Dual Channel
supports PC3200/2700/2100 (DDR400/333/266) DDR SDRAM memory
up to a total size of 2GB
no support of buffered or ECC-modules
- Expansion slots
1 x AGP 8X/4X (1,5V only)
1 x 32 Bit PCI (v2.2)
- 6-channel Audio
Realtek ALC655 5.1 channel audio controller
AC97 v2.2 compiant
analog: line-out (6-ch), microphone, CD-in, AUX
digital: optical SPDIF in and out
- LAN controller
Marvel 88E1111 Gigabit Ethernet network controller
including NVIDIA Hardware Firewall function
supports 10 / 100 / 1000 MBit/s opteration
- Firewire controller
IEEE1394 Firewire controller VIA VT6307
with 2 Firewire connectors (1x front and 1x rear)
supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
- Drive connectors
2 x Serial ATA, supports RAID 0, 1, 0+1
2 x IDE ATA 133 drives
1 x floppy disk drive
- Front-panel I/O
Microphone
Headphone (Line-out)
2x USB 2.0
Firewire (4 pol.)
- Back-panel I/O
Firewire (6 pin)
PS/2 for mouse and keyboard
Gigabit LAN (RJ45)
2 x USB 2.0
6-ch Audio line-out (2x rear/front, bass/center)
line-in
optical SPDIF in and out
coaxial SPDIF out
Serial port (COM)
optional Wireless LAN module
optional parallel port
- Other onboard connectors
2 x USB 2.0 (total 6x)
2 x CDROM input
1 x AUX
1 x Infrared interface
3 x fan connectors
- Conformity
This device is classed as a technical information
equipment (ITE) in class B and is intended for use in
living room and office. The CE-mark approves the
conformity by the EU-guidelines:
- EMV-guideline 89/336/EWG electromagnetic tolerance
- LVD-guideline 73/23/EWG use of electric devices
within certain voltage-limits
|
|
|
|
XPC SN95G5 V3 Specs
 Processor |
AMD Athlon™ 64 (Socket 939) Processors |
| Memory |
Dual-channel DDR 400/333
(2) DIMM slots (2GB max) |
| Motherboard |
FN95 (proprietary)
NVIDIA nForce™3 250 GB chipset
800MHz HyperTransport enhanced System Bus (1600MT/s)
(1) 32-bit PCI slot |
| Graphics |
8X AGP Slot |
| Audio |
6-channel audio
Digital (SPDIF) audio ports
Analog audio ports |
| Network |
Gigabit LAN |
| Storage |
(2) ATA133 headers
(2) Serial ATA 150 headers
(1) FDD header
(1) 5.25" storage bay
(2) 3.5" storage bays |
| Front-panel I/O |
(2) USB 2.0 ports
(1) FireWireR mini port
(1) Microphone port
(1) Headphone port
Power button
Reset button |
| Rear-panel I/O |
(1) PS/2 Keyboard socket
(1) PS/2 Mouse socket
(2) USB 2.0 ports
(1) FireWireR 400 port
(1) Gigabit LAN (RJ-45) with Hardware Firewall
6-channel audio out
SPDIF I/O ports
Coaxial Audio port
Line-in
Serial port
CMOS Reset button
Optional Parallel port |
| Silent X (system cooling) |
Integrated Cooling Engine (ICE)
Intelligently-engineered airflow mechanics |
| Power Supply |
Silent X 240W |
| Dimensions (L x W x H, mm) |
310 x 200 x 185 |
| Weight (net / gross; kg, lbs) |
3.6 (7.92) / 5.2 (11.44) |
|
DDR Compatibility List
Memory Brand Name |
Qty |
3DMark2001SE |
| ADATA ADD8608A8A-45B DDR400 512MB |
2 |
 Pass |
| ADATA V58C2256804SAT5 DDR400 512MB |
2 |
Pass |
| Corsair CMX256S-3000V2 DDR333 256MB |
2 |
Pass |
| Crucial MT46V16M8 DDR333 256MB |
2 |
Pass |
| Elixir M2U25664DS88B3G-6K DDR333 256MB |
2 |
Pass |
| Kingston Winbond W942508BH-5 DDR400 512MB |
2 |
Pass |
| Kingston HyperX KHX4000K2/512 DDR500 256MB |
2 |
Pass |
| Mushkin Enhanced PC3200 DDR400 256MB |
2 |
Pass |
| Mushkin Enhanced PC4000 DDR500 256MB |
2 |
Pass |
| Transcend Winbond W942508BH-5 DDR400 512MB |
2 |
Pass |
| OCZ PC4000 Dual CH Gold Edition DDR500 256MB |
2 |
Pass |
|
|
|
|
 |
|
 |
|
|
|
