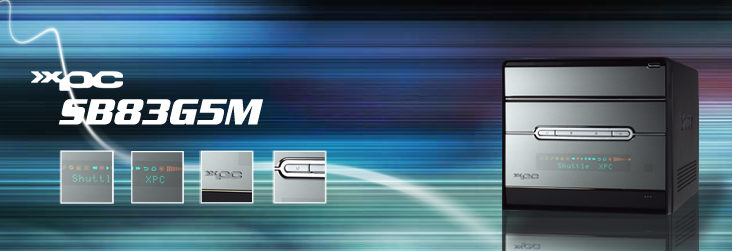

XPC SB83G5M -- Microsoft media center ready XPC

This cool barebone PC, the XPC SB83G5M is ideal for system integrators and DIY enthusiasts looking to build customized solutions for the media center market.

The only choice for a media center based computer

At its core the XPC SB83G5M kit retains the stylish design, excellent ergonomics, and unparalleled technical performance than has become synonymous with Shuttle and the XPC brand. System integrators can be confident that by choosing to build their media center solutions upon the XPC SB83G5M they have chosen the best foundation of reliability and end-user satisfaction on the market.





Super-stable, value enhanced platform

Based on the Intel 915G and ICH6-R chipset, The XPC delivers cutting-edge features and wicked-fast performance. Supporting socket 775 Prescott processors, the 915G chipset will support a fast 800MHz FSB. What's more, because the SB83G5M kit also supports advanced technologies such as SATA RAID and PCI-E graphics, it is possible to create a range of configurations to suit different end-user needs or price points.

Optimized for Media Center Edition 2005 (MCE 2005)

All the components of the kit have been optimized to suit a media center environment, from the small and stylish G5 chassis featuring mirrored front panels and hidden drive bays, to the Silent X cooling solution which ensures system noise remains unobtrusive when enjoying multimedia, everything is tailored to provide the best media center experience possible.

XPC SB83G5M doubles the visuals

The SB83G5M is also one of the first barebone PCs to feature Shuttle's new Versatile Front-panel Display (VFD). Designed to integrate seamlessly with Shuttle's XPC Tools, and Microsoft's® Windows® XP Media Center, it emulates the operation of standard consumer electronics devices to provide useful system and media information without the reliance of an On-Screen-Display.

Living room ergonomics

The SB83G5M is also one of the first barebone PCs to feature Shuttle's new Versatile Front-panel Display (VFD). Designed to integrate seamlessly with Shuttle's XPC Tools, and Microsoft's® Windows® XP Media Center, it emulates the operation of standard consumer electronics devices to provide useful system and media information without the reliance of an On-Screen-Display.

G5 Chassis

Meticulous attention to style, integration and aesthetics allows the XPC SB83G5M to easily integrates into the living room, bedroom or where ever your multimedia needs are. Enclosed in the popular G5 chassis, this XPC is loaded with cool features to let you enjoy your digital life without the distraction of a distasteful beige box.






Stealthed port, drive bays

G5' s clean facia is thanks to three well-integrated stealth bay covers. The optical drive, floppy drive and front media ports can all be hidden from view when not in use--providing superior style and visual appeal.

Mirror Front Panel

This G5 chassis uses our high-grade RefleXion material for the sleekness of a mirrored face without the obnoxious flat glare of 1980s bedroom decor. We have even added a subtle dash of holographic color accenting our logo.







Versatile Front Panel Display (VFD)

Intelligently designed and integrated, this multi-modal VPD panel serves as a secondary display when the PC is in Home Theater mode. The idea behind this display is to improve media delivery by removing DVD, TV and video track information from the monitor and moving it to a display that does not interrupt viewing pleasure. For example, when watching TV, the VFD will display the TV icon, channel as well as volume information.

Using XPC Tools, you can set the VFD to display your systems ergonomic information. Fan speeds, CPU and system temp can all be displayed

while you are busy gaming or enjoying other cool applications with the XPC MAX, allowing for easy system management and control.

Media Connectivity

The integrated media ports on the XPC SB83G5M' s front panel have been designed for excellent functionality. The space between the USB ports is optimized to make room for two devices such as digital camera and thumb drives to be installed at the same time.

Integrated cable management

Starting with the SN85G4 (production version), all new XPC' s will ship with integrated cable management to ease installation. IDE and/or SATA cables are pre-installed, and power leads are wrapped and clipped to the chassis. Other improvements in cable design can be noticed with the new ultra slim front daughterboard cabl


Silent X Technology

The XPC SB83G5 proudly wears the Silent X technology logo. The Silent X concept is embodied in a number of discreet Shuttle technologies, including; A Silent X PSU, Integrated Cooling Engine (ICE); and Intelligently-engineered airflow mechanics.

"Silent X is a world-class family of cooling and noise-reduction technologies exclusive to the Shuttle XPC," said Jonathon Yi, vice-president of product management, Shuttle. "The Silent X logo is your assurance that Shuttle XPC's are 'Super Quiet, Super Cool.'"

Integrated Cooling Engine (ICE) Module

The Integrated Cooling Engine (ICE) included in the SB83G5 improves on the previous XPC ICE design. The ICE module's thermal resistance has been decreased to an amazing .16oC/W. This is more half the thermal resistance of first generation XPCs and almost 1/3 rd that of Intel's BTX standard. Further, the heat exchange surface area has been increased as have the ICE fins. In addition this model sports a huge 92mm cooling fan to quietly push more air out the back of the case.

The Integrated Cooling Engine uses convection (liquid) cooling to transfer heat away from the processor and other critical system components. Copper tubing, coated in nickel and filled with distilled water provides the conduit through which heat is radiated out of the chassis.

Smart Fan

As mentioned the XPC SB83G5 features a new 92mm Smart Fan, capable of 50CFM. This fan features a 4-pin header, i.e PWM spec, and be linearly controlled in BIOS. This fan is designed to spin relatively slowly, depending on the processor using and the heat generated.

XPC Tools Utility

Shuttle XPC Tools is a straightforward thermal, acoustic and performance management application for your XPC. Including several XPC only features, such as "Smart Fan" management and VFD controls, XPC Tools is the only all-round system management application available for the XPC.



250 Watt Power Supply

The XPC SB83G5M features the "Super Quiet, Super Cool" Silent X 250W PSU. Designed specifically for the XPC, this PSU features all the necessary cables to deliver optimized performance. Further, all cables come made to length and preinstalled, making it easy for users to setup and configure their XPC. Tested in our acoustic lab from a distance of 50cm (many competitors take measurements at 1M), this Shuttle Silent X 250W PSU produces 32dB (or less) noise.

Intelligently Engineered Airflow

XPC SB83G5M features more air intake points designed to keep the motherboard cool and stable. The chassis and underside of this XPC feature strategically positioned intake points that channel cool air across critical components. These intake points are intelligently- engineered--size and position--to minimize noise.

XPC SB83G5M Specs

Processor Intel® Socket 775 Pentium® 4 / Celeron® D Memory Dual-channel DDR 400/333 (2) DIMM slots (2GB max) Motherboard FB83 (proprietary) Intel® 915 + ICH6-R chipset 800/533 MHz FSB (1) 32-bit PCI slot Graphics 16X PCI Express slot Intel® Graphics Media Accelerator 900 DVMT memory architecture Audio 6-channel audio Digital (SPDIF) audio ports Analog audio ports Network Gigabit LAN Storage (1) ATA100 headers (2) Serial ATA 150 headers (1) FDD header (1) 5.25" storage bay (2) 3.5" storage bays Front-panel I/O Versatile Front-panel Display (VFD) (2) USB 2.0 ports FireWire® mini port Microphone port Headphone port Power button Reset button Rear-panel I/O PS/2 Keyboard socket PS/2 Mouse socket (2) USB 2.0 ports FireWire® 400 port VGA-out Gigabit LAN (RJ-45) 6-channel audio out SPDIF I/O ports Coaxial Audio port Serial port CMOS Reset button Optional Parallel port Silent X (system cooling) Integrated Cooling Engine (ICE) Intelligently-engineered airflow mechanics Power Supply Silent X 250W Dimensions (L x W x H, mm) 310 x 200 x 185 Weight (net / gross; kg, lbs) 3.6 (7.92) / 5.2 (11.44)
